12m Octangle street Light Pole Production Line CNC Deep Hole Drilling Machine

Name: 12m Octangle street Light Pole Production Line CNC Deep Hole Drilling Machine
Brand: WXJQ
Price: 1 USD

Buy cheap 12m Octangle street Light Pole Production Line CNC Deep Hole Drilling Machine product

Brand Name : WXJQ

Model Number : 35/500

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 2 sets per month

Delivery Time : According to the requirement of order

Packaging Details : iron pallet with plastic cover.

Product Name : drilling machine

application : drilling hole

drillinbg thikcness : 2-10mm thickness wall

Max.hole : 12mm

drilling type : use two drilling motor to drilling double hole

character : fast drilling hole speed

working state : machine can move any hwere

consumed power : 1.2KW

Contact Now

12m Octangle Street Light Pole Production Line CNC Deep Hole Drilling Machine

Application:

It is suitable for light pole top fixing hole quick drilling process.

Once finish two holes. Then rotated the pole 90 degree, to finish another 2 holes.

Pole is not moving, the machine is moving tape. Easy to make fix hole for big length light pole.

12m Octangle street Light Pole Production Line CNC Deep Hole Drilling Machine

Technical Data

Technical indicators	Technical parameters
Suitable for pipe diameter	40~120mm
Suitable for pipe thickness	2~10mm
Max. hole diameter	12mm
Drilling cutting feed stroke	0~30mm
Feed driving force	1200N
No loading rotation speed	1000rpm
Drilling motor	600W+600W
Air consumption for single head	3~6 L/stroke
Total power consumed	1.2KW
Power supply	380V,50Hz 3 phases,or according customer requirement
Overall dimension(L×W×H)	1500mm×800mm×700mm
Weight	100kg

Description:

This machine is used for drill the holel on the light pole automatically.It can drilling two holes

one time. And easy to operate. the maachine can move to any where. the voltage of machine

special order.

Guarantee & After Sale Service:

Guarantee for 1 year excluding consumable parts .Extra fee is paid if out of date.

Any damage to the machine caused by improper use will be charged.
when receiving the your money, we will prepare machine for you, it will spend

15-30days, to get the shipping pictures for you.
24-hour technical support Internet or by Telephone, free instructions and
Problem solving.
Free installation and fully test before sending and free training for operators

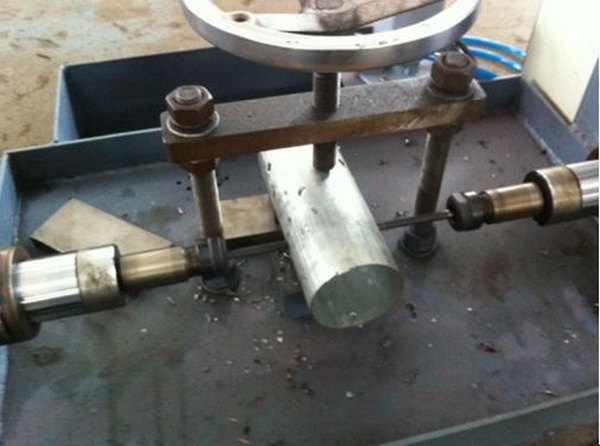

Machine photo:

12m Octangle street Light Pole Production Line CNC Deep Hole Drilling Machine
